Projects

ANTI ROLLER BAR HEATING AND QUENCHING MACHINE

Anti Roller Bars

Heating with 3 phase Dc upto 300 Kva upto 1000̊C and lifting and dropping on conveyor chain for quenching in oil tank for heat treatment. Can also be used for heating & bending.

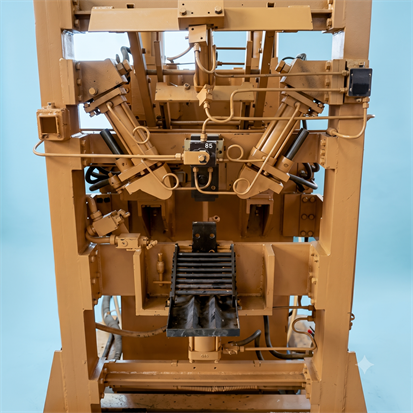

PENDROL CLIP MANUFACTURING AND CNC FATIGUE TESTING MACHINE

Pendrol Clip

Comprising of auto feeding, Heating, U bending and final shape in twin cylinder hydraulic alongwith quenching.

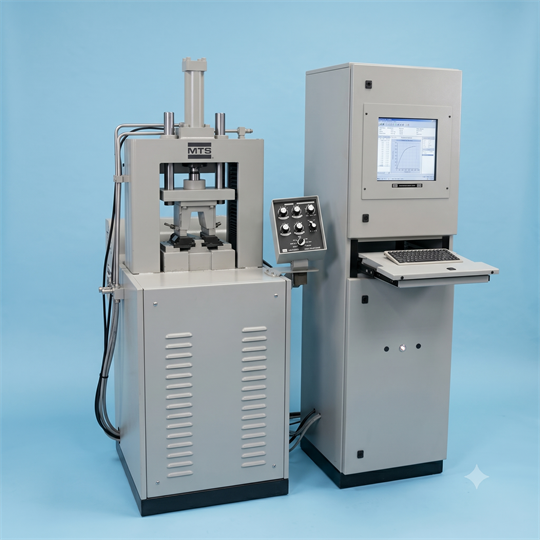

Testing machines comprises of 1000 strokes per Min at Max. 2 ton pressure with computer aided recording for deformation if any cycle can be of 48 hrs.

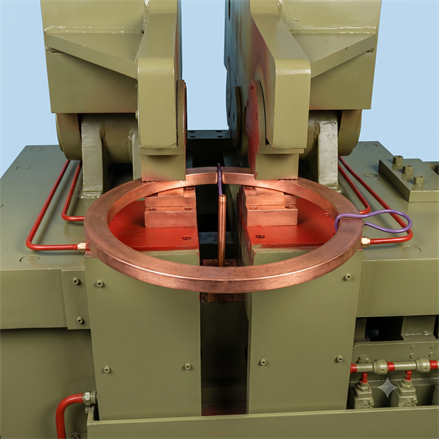

FLANGE MANUFACTURING

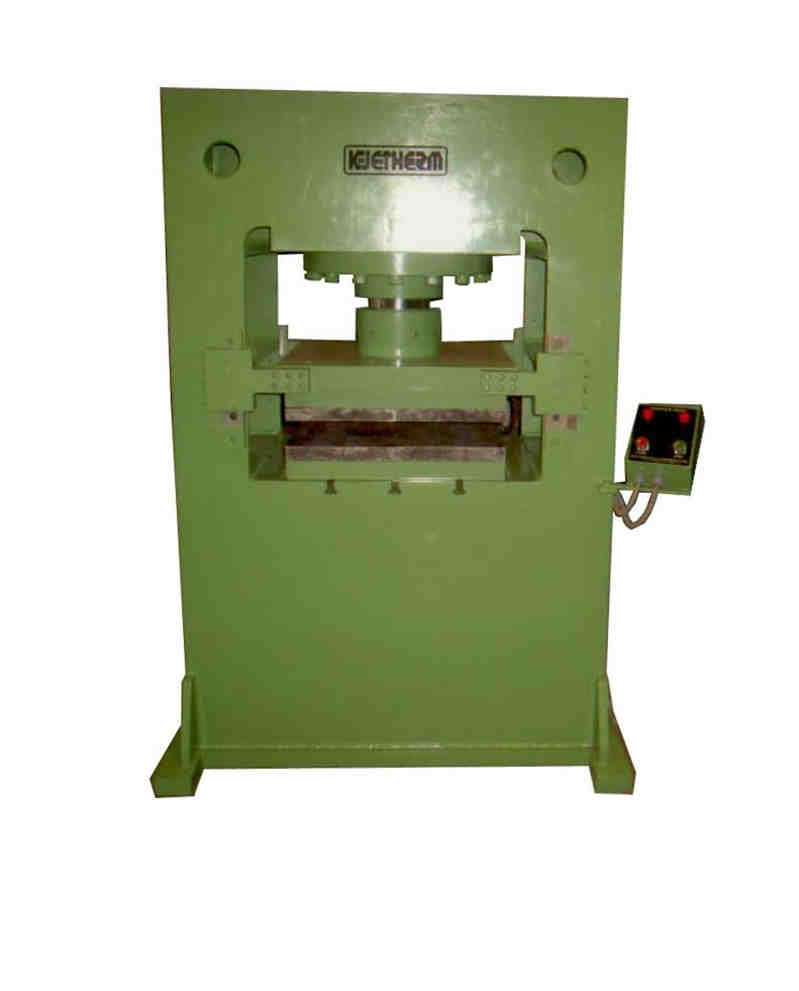

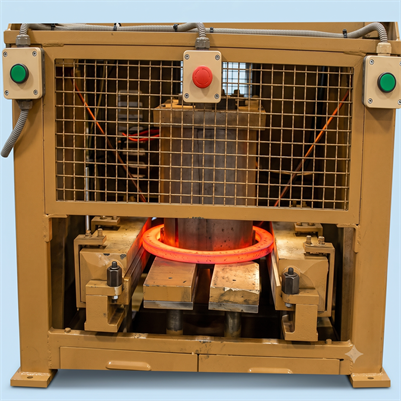

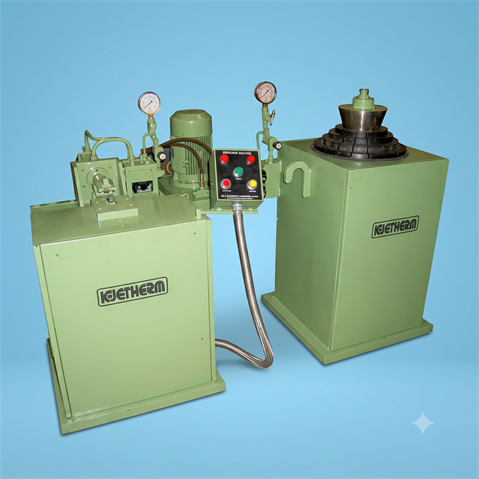

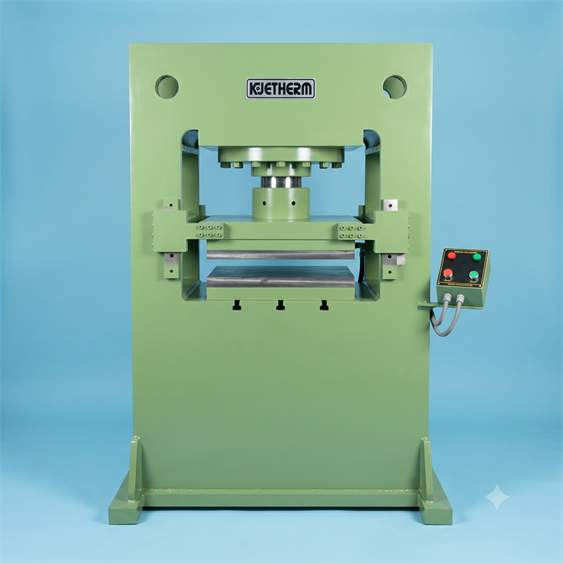

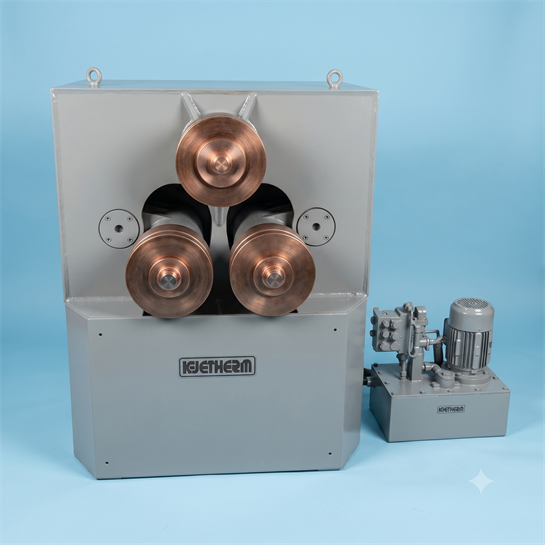

Comprising of coiling machine, cutting machine, flash butt welding, ring heater, ring stretching and flatenning (coining) press.

Flanges Including Auto Industries

(Part of main axle industry) pipes in chemical industry etc.

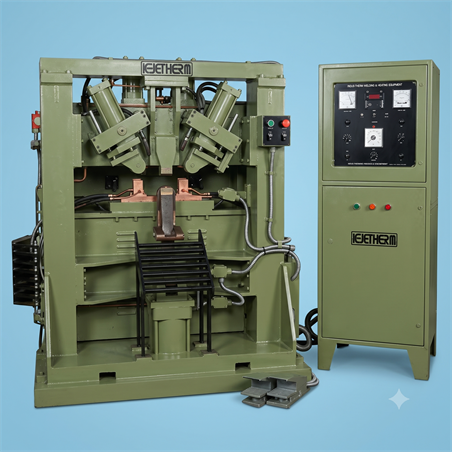

U BOLT FORMING & BENDING MACHINES

Auto U Bolt Heating Anf Forming Machines

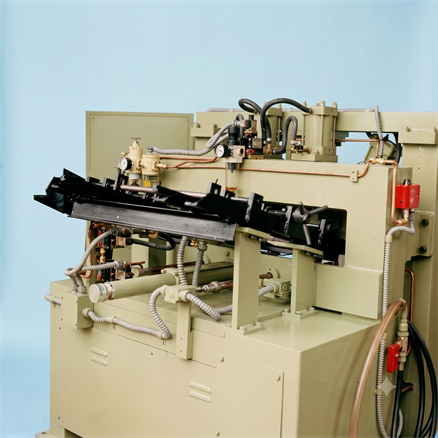

Supplied with auto feeder, heating at centre, bending (Pneumaticallly) of forming (Hydraulically) and final bending for U shape.

Production rate: 1200 nos. to 2000 nos. per shift

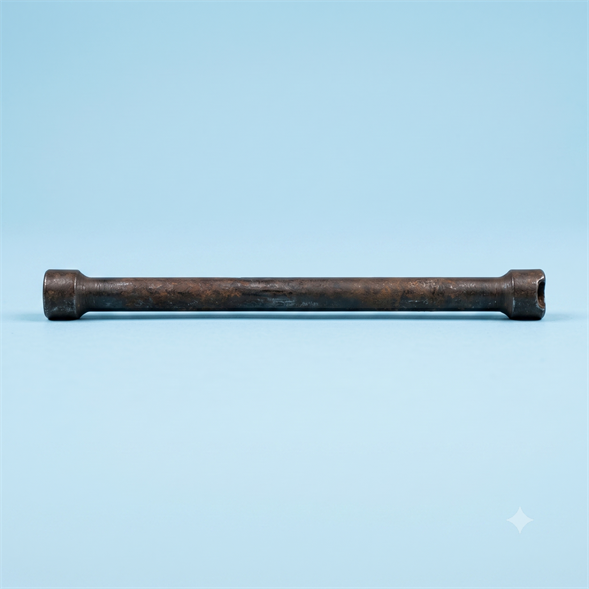

TORSION BAR MANUFACTURING PLANT

Torsion Bars

Comprises of metal gathering (upto 150 Kva) and forging in horizontal hydraulic press upto 150 tons and can handle basic diameter upto 40 mm alongwith clamping and upsetting dies/punches.

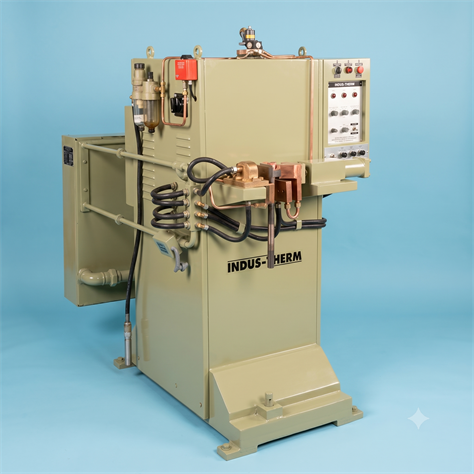

ELECTRO BRAZING MACHINE

Electro Brazing Machine, 10 Kva Carbide Tips In Drill Rods, Copper To Copper, Silver Tips,etc..

Machines Can Be Made Upto 200 Kva

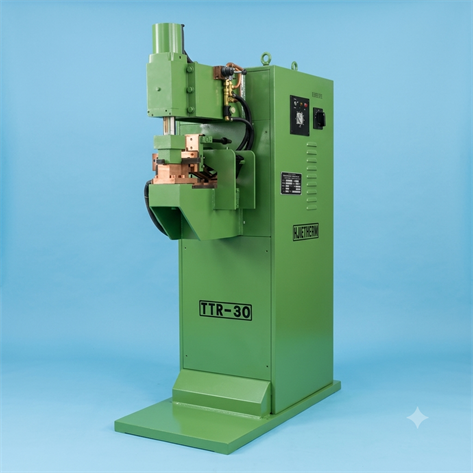

TENNON RIVETTING MACHINE

Tennon Riveting 30 Kva For Welding / Rivet Heading Of 'T' Section In "Z" Section Of Window Manufacturing.

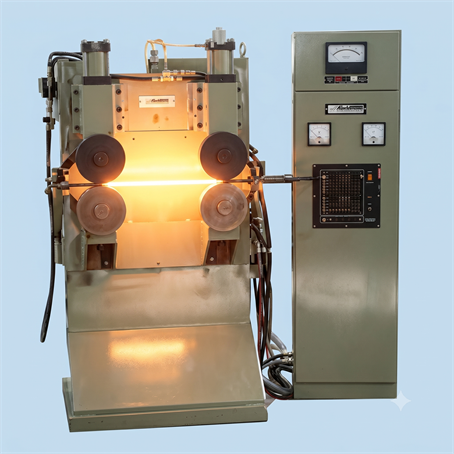

CONTINUOUS WIRE HEATER

Continuous Wire Heater 50 Kva Generally Available With Straightening . Pre Heating For Bolt Heating / Nut Headings Upto 16 Mm Wire Dia.

DRILL ROD UPSETTING MACHINE

Hydraulic Press For Drill Rod Upsetting At Tip End As Well As At Shank End .

INDUCTION RING HEATER

Induction Ring Heater 75 Kva At Supply Frequency For Flanges., Starter Rings For Resizing And Stress Relieving Bearing Recesses For Expansion And Fitting.

Higher Kva (Upto 250 Kva )

Application

Include Railway Tyres

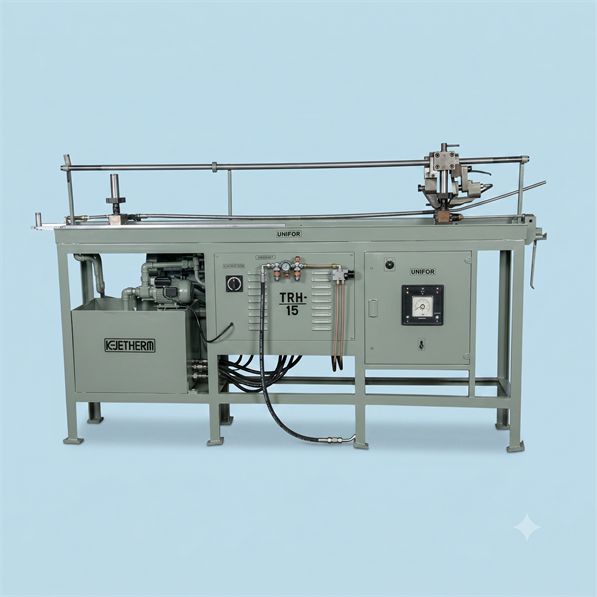

WIRE HEATER

Heating Elements 15 Kva For Annealing With Water Sprinkles To Form In Various Shapes And Coils.

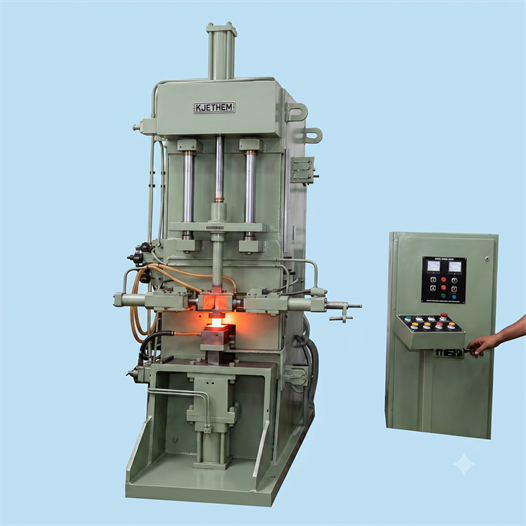

METAL GATHERING MACHINE VERTICALLY DOWNWARDS

Tmg-V(D) -150 Kva Heavy Duty Vertically Down Holdings As Jobs Are Heavy For Auto Components And Bolts For Ship

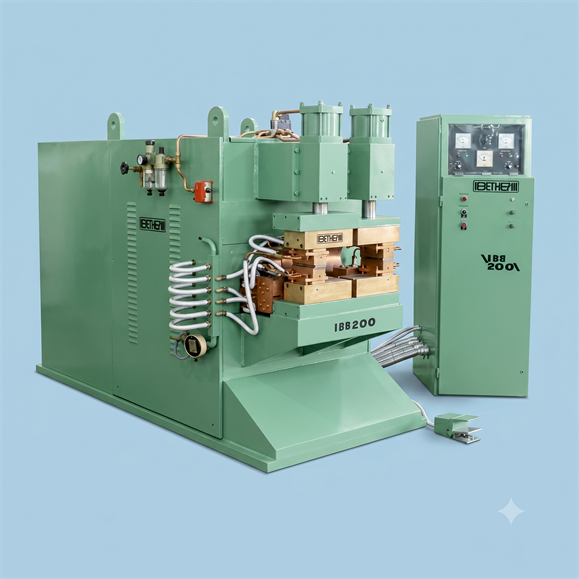

RESISTANCE HEATER

Electric Resistance Heating Machine 200 Kva For End / Centre Heating For Leaf Springs For End Coiling And Centre Punching Used For Suspension In Auto Industries.
