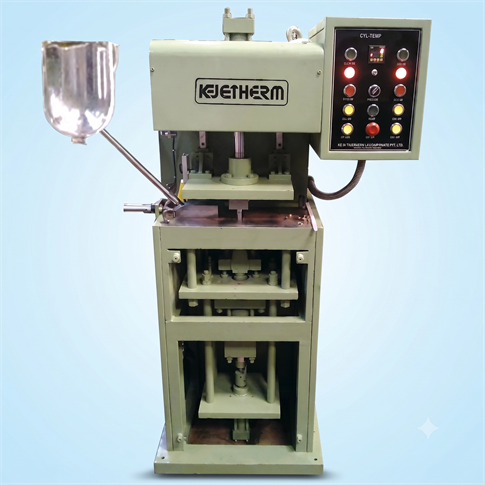

Volumetric Cold Compacting press
Volumetric Cold Compacting PressFeatures
Process
Latest trend to increase the output production rate with automation made us to manufacture the volumetric cold compacting press .
Hopper is filled with granulated powder with diamond grit of the required proportion . Initiation of cycle put hydraulic/pnuematic cyclinder ,fill the powder in the cavity (dies/punch as per customer's need) followed up by pressing by top cylinder position ,ejector lifts up the cold compacted segment. This is automatically pushed into the tray provided , simultaneously filling the cavity with new powder and auto cycle continues.
Change of dies/punch is very easy and doesnot take more than 20 minutes these process are manufactured into 2 different standard models of 5 tonnes & 12 tonnes with following specifciations.
We can manufacture these machines in various configuration as per customer's requirement :-
|
STANDARD MODELS
|
TCP-V-5
|
TCP-V-12
|
| TONNES |
5
|
12
|
| RAM STROKE (mm) |
100
|
150
|
| DAY LIGHT (mm) |
400
|
500
|
| FIXED TABLE (mm) |
350*400
|
400*450
|
| SPEED OF RAM APPROX (mm/sec) |
30
|
50
|
| PRESSING (mm/sec) |
5
|
3
|
| WORKING HEIGHT (mm) |
950
|
950
|
| MOTOR (H.P) |
3
|
5
|
| MAX HYDRAULIC PRESSURE (in bar) |
160
|
160
|
